The WRL-70 Transmitter
Cira 1941

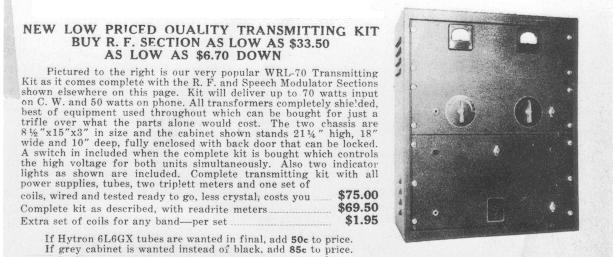

WRL-70: transmitter
70 watts CW; 6L6 crystal oscillator, pair 6L6G's
final amplifier, 83 rectifier.
6SJ7 speech amplifier, 6N7 driver, push-pull 6L6G modulator.
WRL-70: transmitter
70 watts CW; 6L6 crystal oscillator, pair
6L6G's
final amplifier, 83 rectifier.
6SJ7 speech amplifier, 6N7 driver, push-pull
6L6G modulator.
