Globe King 500
Circa 1955

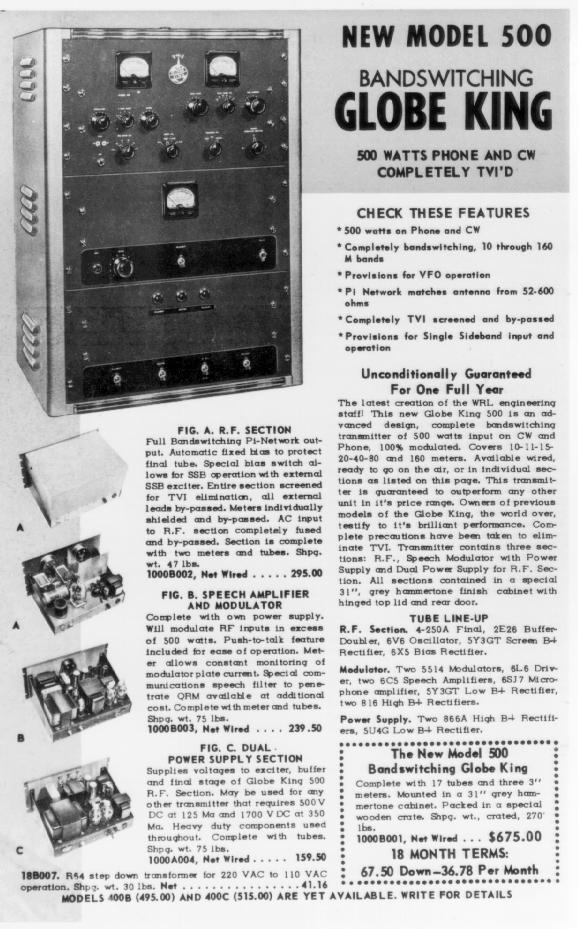

Globe King 500: transmitter; Ad: JUL 54 QST;
price $675.00
wired; 500 watts AM, 500 watts CW, 500 watts SSB (with external
exciter); 160 thru 10 meters; bandswitching. RF Section:
6V6
crystal oscillator, 6146 buffer, 4-250A final, 6X5 and 5Y3 low
voltage rectifiers. Modulator: 6SJ7 speech amplifier,
6C5
amplifier, 6C5 amplifier, 6L6G driver, push-pull 5514
modulators, 5Y3 low voltage rectifier, pair 816 high voltage
rectifiers. Power Supply: 5U4G low voltage rectifier,
pair
866A high voltage rectifiers. Crated shipping weight 270
lbs.
